◆ Battery Configuration
|
|
|
Serial Configuration S
|
|
: Connecting cells in serial configuration (increases the voltage)
- Fox Example you want 3S Packs for Single Cell H9059156 3.7V 10,000mAh
The voltage of Battery Packs will be increased by three times.
- The Voltage of Battery packs (3.7*3=11.1V)
however the current remains the same as single Cell at (10000mAh)
|
|
|
|
Parallel Configuration P
|
|
: Connecting cells in Parallel configuration (increases the current)
Fox Example you want 3P packs from Single Cell H9059156 3.7V 10Ah
-The Voltage of Battery Packs will remain the same. At 3.7V
-The Capacity of Battery Packs Current will be increased three times.3*10000mah=30Ah
|
|
|
1-3
|
Serial, Parallel Configuration
|
|
: Connecting cells in both serial and Parallel configuration
(increases the current as well as voltage) Mainly for Notebook
- The voltage will be increased in accordance to the configuration.
- The current will be increased in accordance to the configuration.
|
|
|
The configurations will not affect the overall power but provide the most suitable voltage and current
|
|
|
◆ Smart Battery Pack
|
|

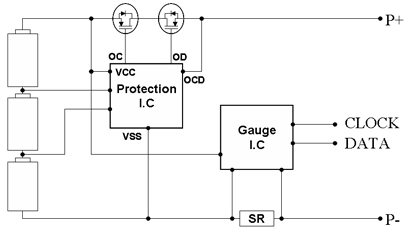

: Composition - PCM(Protection Circuit Module) + Gauging(Smart Circuit)
|
|
|
|
|
|
|
|
◆ Protection Circuit Board
|
|
: Never charge or discharge the battery without connecting appropriate protection circuit. The function of the Standard Lithium Ion Cell PCM are as follows:
|
|
|
|
1) Protect against over charge
|
|
The PCM will automatically terminate the charging process once the maximum charging rate has been exceeded.
|
|
2) Protect against over discharge.
|
|
The PCM will automatically terminate the discharging process once the maximum discharging rate has been exceeded.
|
|
|
|
3) Over current charging and Over current discharging can be avoided.
|
|
Over current charging and Over current discharging can be avoided.If irregular voltage rating is being applied in the process of charging and discharging, the process is automatically terminated by the PCM.
|
|
|
|
|
